Product Description
DisplayPort To HDMI (28AWG) Cable 4K With Latch
Compliant with DP1.2 specification.

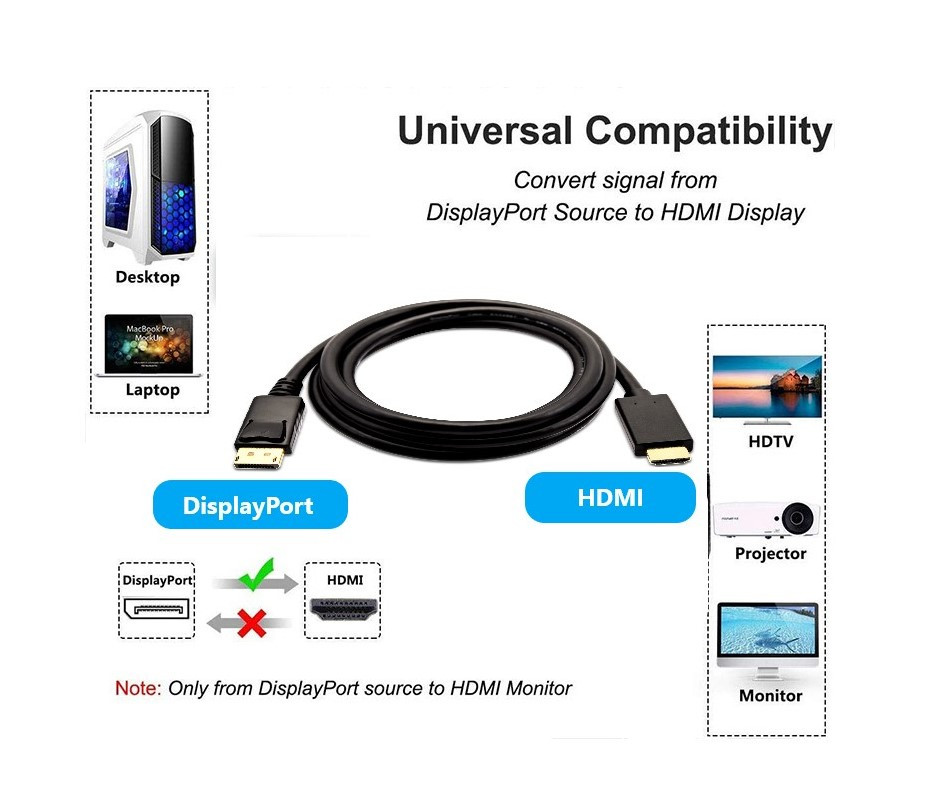

Connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to a HD monitor or projector with HDMI connector.
Support HBR bandwidth and resolutions up to 4Kx2K@30Hz.
Gold-plated connector provides superior transmission, high reliability and durability.
Deliver high definition audio and video signals from your computer to a monitor for video streaming or gaming.
DisplayPort connector with latches keeps cable securely plugged in.
All relevant materials are complied with RoHS directive.
Features:
- Support DisplayPort1.2 and 4 lanes.
- Support DisplayPort 1.2a input and HDMI1.4b output.
- Support HDMI highest video resolution 4Kx2K@30Hz.
- Support multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2, 8/10/12bpc.
- HDMI 1.4a compliant with maximum data rate 3.0Gbps.
- Support 10/12-bit deep color 1080p up to 2.25Gbps and 3D video formats (720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24Hz, 1080P@50/59.94/60Hz) up to 2.97Gbps.
- Content protection of HDCP Rx and Tx keys to support HDCP repeater.
- Support up to 8 channel LPCM, compressed audio (AC-3,DTS) and HBR audio format.
- Support up to 192 khz audio frame rate and up to 24-bit audio sample size.
- Integrated both HDCP Rx and Tx keys to support HDCP repeater.
- Powered from DisplayPort source.
Cable Lengths: 3, 6, 10, 15 ft.
|
Part Number |
Length |
|
DP-HDMI-3 |
3 Feet |
|
DP-HDMI-6 |
6 Feet |
|
DP-HDMI-10 |
10 Feet |
|
DP-HDMI-15 |
15 Feet |
